In the complex ecosystem of a data center, every component matters, and none more so than the Power Distribution Unit (PDU). Often overlooked, this critical piece of equipment is the literal backbone of your rack, delivering reliable power to every server, switch, and storage device. The choice you make here doesn't just impact power delivery; it influences everything from airflow and cable management to scalability and operational efficiency. But with so many options, how do you know if a vertical or horizontal Power Distribution Unit is the right choice for your needs? We're here to break down the key differences, helping you make a smart, informed decision that will serve your business for years to come.

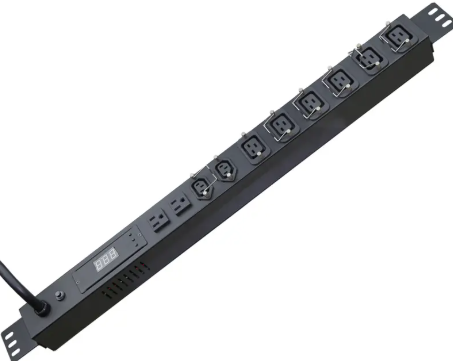

Think of the horizontal Power Distribution Unit as the traditional choice. This type of PDU is designed to be mounted horizontally within a server rack, typically occupying 1U or 2U of valuable rack space. For decades, these units have been the standard, offering a straightforward and reliable way to get power to your equipment. They are often found in smaller-scale deployments, server closets, or labs where the density of equipment is not a primary concern. Their design is simple: a strip of outlets that sits horizontally in the rack, providing easy front access for plugging in devices.
Ease of Access: With outlets in the front or rear of the unit, it’s incredibly simple to plug in or unplug equipment. For a small rack with only a few devices, this convenience can be a major plus.
Cost-Effective for Low-Density Setups: In environments where rack space is not at a premium and the number of devices is low, a horizontal Power Distribution Unit is often a more budget-friendly option. Their simpler design means they generally have a lower initial cost.
Familiarity and Simplicity: Many technicians and IT staff are accustomed to working with horizontal PDUs. Their simple, straightforward design makes them easy to understand and deploy without extensive planning.
While they have their place, horizontal PDUs come with significant drawbacks, especially as your infrastructure grows.
Wasted Rack Space: This is the most significant disadvantage. A horizontal PDU takes up at least 1U of rack space—space that could be used for a server, a switch, or a storage array. In high-density environments, every single U counts.
Cable Clutter: Since all the devices in a rack are likely plugged into one or two horizontal PDUs, the resulting cable spaghetti can be a nightmare. This not only looks messy but also obstructs airflow and makes maintenance or troubleshooting a frustrating task.
Limited Outlet Count: Due to their small form factor, horizontal PDUs simply cannot accommodate a large number of outlets. For a high-density rack, you would need multiple horizontal PDUs, which exacerbates the wasted space and cable clutter issues.
Small server closets or edge computing locations: Where space isn't the primary constraint.
Labs and testing environments: For temporary or low-density setups that require easy access.
Racks with low equipment density: When you only need to power a handful of devices and have plenty of available U space.
The vertical PDU, also known as a 0U PDU, represents a modern, more efficient approach to power distribution. Instead of occupying rack space, a vertical power distribution unit is designed to be mounted vertically along the side or rear of the rack. This revolutionary design choice, which takes up zero U space, is a game-changer for data centers where every inch of real estate is precious. This type of power distribution unit is now the preferred solution for almost all new data center builds and high-density rack upgrades.
Zero U Space, Maximum U Utilization: The biggest benefit of a vertical power distribution unit is right in its name. By using 0U of space, it frees up the entire rack for revenue-generating equipment. In a world where every rack-mounted device represents a potential source of income, this is a non-negotiable advantage.
Superior Cable Management: A vertical PDU's design naturally facilitates better cable management. Cables can be routed neatly along the side of the rack and plugged into the nearest outlet, keeping the airflow path clear and preventing the messy tangles common with horizontal PDUs.
Increased Outlet Density: Because they are longer, vertical PDUs can house a much greater number of outlets than their horizontal counterparts. This makes them perfect for high-density racks packed with multiple servers and networking equipment, all powered by a single, clean unit.
Enhanced Airflow and Cooling: By keeping cables organized and out of the way, a vertical power distribution unit significantly improves airflow within the rack. This results in more efficient cooling, which can lower your energy consumption and extend the lifespan of your critical IT equipment.
While the benefits are clear, there are a couple of things to consider.
Higher Initial Investment: The advanced design and greater capacity of a vertical PDU can come with a higher upfront cost. However, this cost is quickly offset by the long-term savings in space, energy, and improved operational efficiency.
Requires Vertical Mounting: Not all older server racks are designed with dedicated mounting brackets for a vertical power distribution unit. However, this has become an industry standard, and most modern racks are equipped for 0U mounting.
High-density data centers: Where maximizing rack space for servers is a top priority.
Colocation facilities: For clients who pay for every U of rack space they use.
Hyperscale or enterprise environments: Where efficient power management and advanced features are essential for large-scale operations.
Any new data center build: As they provide the best foundation for future scalability.
Choosing between a vertical and horizontal Power Distribution Unit isn’t just about the physical size. It's about a range of features that can dramatically impact your data center’s performance.
Feature | Horizontal (1U/2U) PDU | Vertical (0U) PDU |
Space Utilization | High (takes up valuable U space) | Zero (frees up space for equipment) |
Outlet Density | Low to moderate | High |
Cable Management | Poor (prone to clutter) | Excellent (promotes clean, organized cabling) |
Airflow | Often obstructed by cables | Improved and efficient |
Cost | Lower initial cost | Higher initial cost, but better long-term ROI |
Scalability | Poor (requires adding more units, wasting space) | Excellent (single unit can power many devices and is easy to add to a new rack) |
Outlet Variety: Both PDUs come with a variety of outlets, including the commonly used C13, C19, and NEMA outlets. A key advantage of a vertical power distribution unit is its ability to offer a mix of different outlet types on a single unit, allowing you to power a wide range of devices without needing multiple PDUs or adapters.
Smart Features: Today's PDUs, both vertical and horizontal, go far beyond simply distributing power. Smart PDUs offer a range of intelligent features that are essential for modern data center management. These include:
Remote Monitoring: The ability to monitor power consumption, voltage, and current in real-time.
Outlet-Level Control: The ability to remotely turn individual outlets on or off, a crucial feature for remote rebooting and power cycling.
Environmental Sensors: Integration with sensors that monitor temperature and humidity, helping you identify potential issues before they cause downtime.
For any modern data center, a smart power distribution unit is a critical tool for managing power and improving uptime.
A growing technology firm was struggling with a common problem: they were running out of space in their data center racks. Their racks were filled with servers, but their horizontal PDUs were taking up precious U space and creating a tangled mess of cables that was hindering airflow and making maintenance a nightmare.
Sheeline's team of experts analyzed the situation and recommended replacing their horizontal units with our customized vertical power distribution unit solutions. By implementing the 0U design, the firm was able to reclaim 2U of rack space per rack, allowing them to add more servers and significantly increase their computing capacity without expanding their physical footprint. The change also led to a noticeable improvement in airflow, which lowered their cooling costs and improved the reliability of their equipment. The client was not only thrilled with the space savings but also with the dramatic improvement in cable management, which made their IT infrastructure cleaner, safer, and easier to manage.
The decision between a vertical and horizontal Power Distribution Unit is a critical one, but for modern, high-density environments, the choice is clear. While horizontal PDUs may serve a purpose in small, low-density setups, the benefits of a vertical power distribution unit are simply overwhelming. They save space, improve cable management, enhance cooling, and provide a scalable, efficient foundation for your data center’s future. In a world where power efficiency and rack space are at a premium, a vertical PDU is not just an option—it’s a necessity.
Ready to optimize your data center? Contact Sheeline today to find the perfect power distribution unit for your needs.
Q1:What is the primary benefit of a 0U PDU?
The primary benefit of a 0U power distribution unit is that it doesn't take up any vertical space in your rack. This allows you to maximize the amount of space available for your servers and other revenue-generating IT equipment, which is a major advantage in high-density data centers.
Q2:Can I install a vertical power distribution unit in my existing server rack?
Most modern server racks are designed to accommodate a vertical power distribution unit with mounting brackets along the sides or rear of the rack. However, it's always best to check your rack's specifications to ensure it can support a vertical installation.
Q3:What’s the difference between a basic PDU and a smart PDU?
A basic power distribution unit simply distributes power to your equipment. A smart PDU offers a range of intelligent features, such as remote monitoring, outlet-level power control, and environmental sensors, which allow for more efficient and proactive data center management.
Q4:How do I choose the right PDU for my rack?
Choosing the right Power Distribution Unit depends on your specific needs. You should consider the density of your rack, the number of devices you need to power, and whether you require advanced features like remote monitoring and outlet-level control. For high-density racks, a vertical power distribution unit is almost always the best choice.
