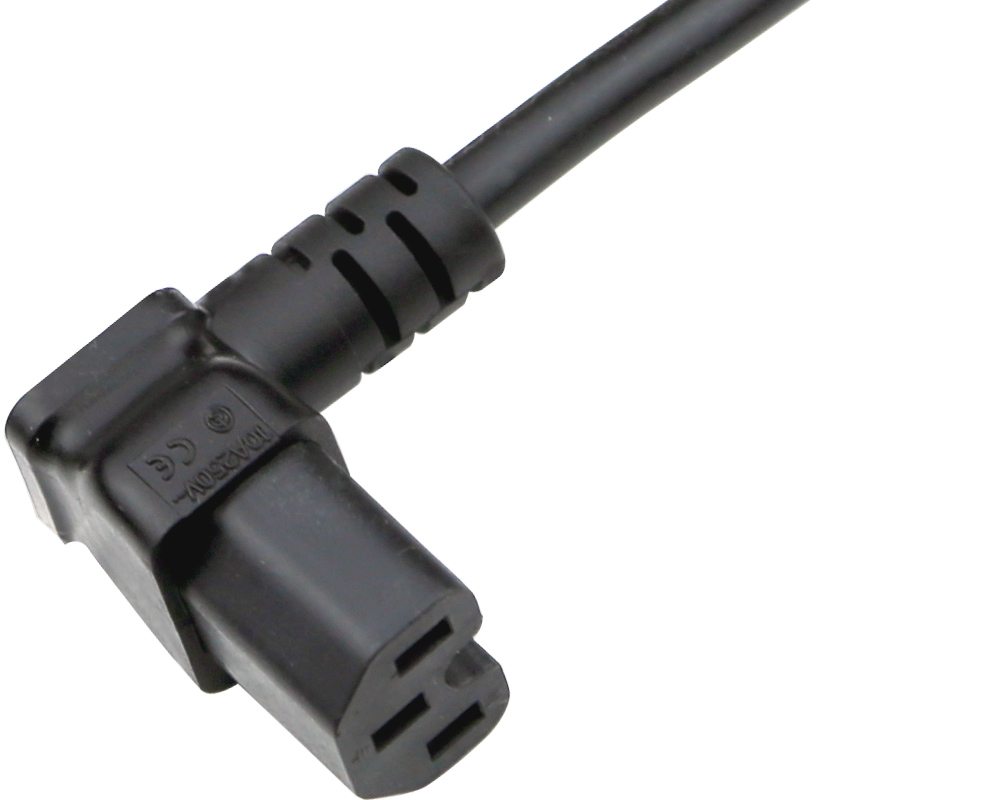

IEC 60320 C15
| Countries | US/CANADA | Approvals | |
| Wire Type | SVT 18AWG/3C(SHIELDED) SJT 18~14AWG/3C(SHIELDED) | ||
| Voltage | 125V~250V~ | ||
| Electric Current | 10A(18AWG) 13A(16AWG) 15A(14AWG) | ||
| Processing | Terminal Heat shrink Wire strippingtin-plate Tin-plate | ||
| Specification |  SL-25L (US Power Cord).jpg | ||
| EUROPE | Approvals | ||
| Wire Type | H05VV-F 0.75~1.0mm 2/ 3G | ||
| Voltage | 250V | ||
| Electric Current | 10A | ||
| Processing | Terminal Heat shrink Wire strippingtin-plate Tin-plate | ||
| Specification |
In today's interconnected world, power cord connectors are the unsung heroes that bridge the gap between your devices and their power source. From charging your smartphone to powering industrial machinery, these essential components ensure a safe and continuous flow of electricity. But with a myriad of types and specifications available, understanding the nuances of power cord connectors is crucial for making informed decisions. This comprehensive guide will delve into everything you need to know about these vital electrical links, helping you choose the right connectors for your specific needs and ensuring optimal performance and safety.
At its core, a power cord connector is a device that joins an electrical cord to an electrical outlet or another electrical device, allowing power to be transmitted. These connectors are designed with various pin configurations, current ratings, and voltage capacities to accommodate different applications and regional standards. They typically consist of a plug (male end) and a receptacle (female end) that mate together to form a secure electrical connection. The quality and type of connector directly impact the safety, efficiency, and longevity of your electronic equipment.
The world of power cord connectors is diverse, with each type designed for specific purposes and environments. Understanding these variations is key to selecting the appropriate connector.
IEC Connectors: These are perhaps the most common type, globally recognized for their standardization. The International Electrotechnical Commission (IEC) sets the standards for these connectors, ensuring interoperability worldwide. The IEC 60320 series, in particular, covers a wide range of appliance couplers.
C13/C14 Connectors: Ubiquitous in computers, monitors, and many other electronic devices, the C13 (female) and C14 (male) connectors are a staple. They are rated for up to 10 amps and 250 volts, making them suitable for a vast array of consumer and professional electronics.
C15/C16 Connectors: Similar to C13/C14 but designed for higher-temperature applications, often found in devices like electric kettles or servers that generate more heat.
C19/C20 Connectors: These are larger and more robust, commonly used for high-power devices such as servers, uninterruptible power supplies (UPS), and professional audio equipment, rated for up to 16 amps.
NEMA Connectors (North America): The National Electrical Manufacturers Association (NEMA) sets the standards for plugs and receptacles used primarily in North America.
NEMA 5-15P/R: The standard three-prong grounded plug and receptacle found in homes and offices across the US and Canada.
NEMA 5-20P/R: A 20-amp version of the 5-15, often used for power tools and appliances requiring more current.
Twist-Lock Connectors: These NEMA-style connectors feature a unique locking mechanism that prevents accidental disconnection, making them ideal for industrial, stage lighting, and demanding outdoor applications.
Country-Specific Connectors: Beyond IEC and NEMA, many countries have their own unique power plug and socket standards (e.g., Type G in the UK, Type F in Europe, Type I in Australia/New Zealand). When traveling or importing devices, it's essential to be aware of these regional differences and use appropriate adapters or power cords.
Selecting the right power cord connector involves more than just aesthetics. Several critical factors must be taken into account to ensure safety, performance, and longevity:
Voltage and Current Rating: This is paramount. Ensure the connector's ratings match or exceed the requirements of your device. Overloading a connector can lead to overheating, short circuits, and even fires.
Application Environment: Will the connector be used indoors or outdoors? In a harsh industrial setting or a clean office environment? Factors like moisture, temperature extremes, and chemical exposure can influence the choice of materials and construction.
Safety Certifications: Always look for connectors that meet relevant safety standards, such as UL (Underwriters Laboratories) in North America, CE (Conformité Européenne) in Europe, or RoHS compliance. These certifications indicate that the product has undergone rigorous testing and meets specific safety criteria.
Cable Type and Gauge: The connector must be compatible with the power cable's gauge (thickness) and type (e.g., PVC, rubber, shielded). A properly matched cable and connector ensure efficient power transmission and prevent unnecessary heat buildup.
Locking Mechanisms: For critical applications where accidental disconnection could be dangerous or disruptive, consider connectors with locking mechanisms like twist-lock designs or screw-on collars.
Durability and Material Quality: High-quality connectors are made from robust materials that can withstand repeated use, temperature fluctuations, and physical stress. Investing in durable connectors can save you time and money in the long run by reducing replacements and downtime.
Using high-quality power cord connectors is not just about convenience; it's about safety, reliability, and performance. Substandard connectors can lead to a host of problems, including:
Fire Hazards: Overheating due to poor connections or insufficient current ratings can ignite surrounding materials.
Equipment Damage: Fluctuating power delivery can harm sensitive electronics.
Intermittent Power: Loose or corroded connections can cause power interruptions, leading to data loss or operational downtime.
Reduced Lifespan: Weak connectors wear out quickly, requiring frequent replacements.
By investing in reputable brands and ensuring your connectors meet all necessary specifications, you're safeguarding your devices, your property, and yourself. Whether you're setting up a home office, a data center, or a manufacturing plant, understanding and selecting the right power cord connectors is an essential step towards a secure and efficient electrical infrastructure.
