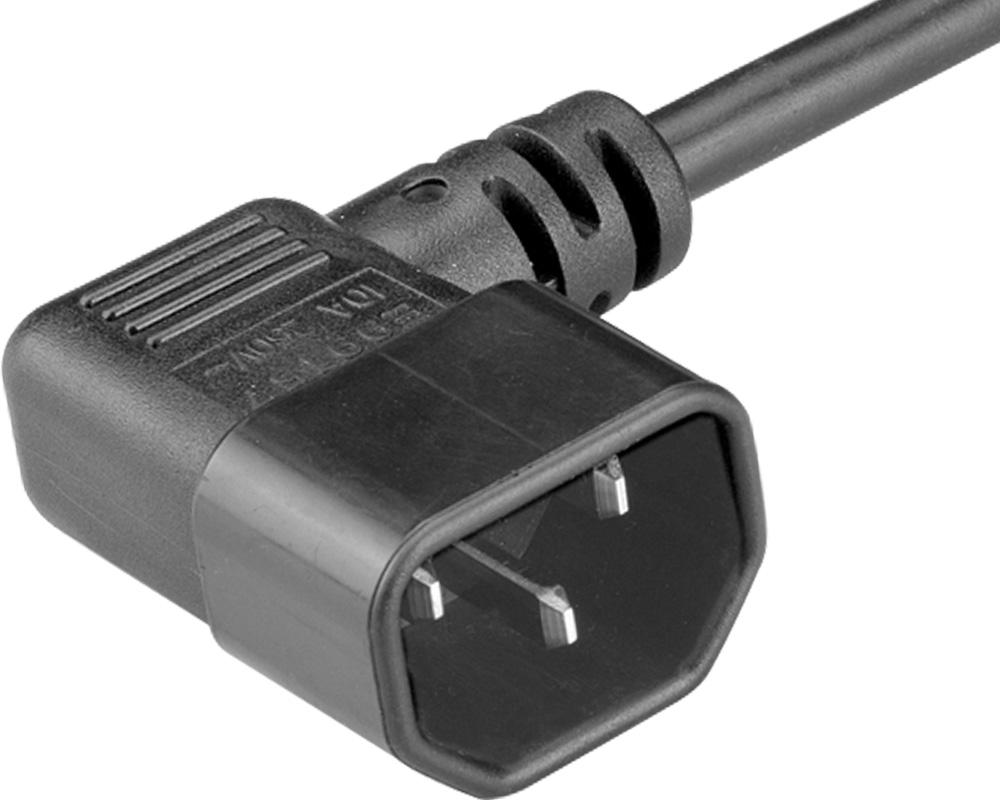

IEC 60320 C14
| Countries | US/CANADA | Approvals | UL |
| Wire Type | SVT 18AWG/3C(SHIELDED) SJT 18~14AWG/3C(SHIELDED) | ||
| Voltage | 125V/250V | ||
| Electric Current | 10A(18AWG) 13A(16AWG) 15A(14AWG) | ||
| Processing | Terminal Heat shrink Wire strippingtin-plate Tin-plate | ||

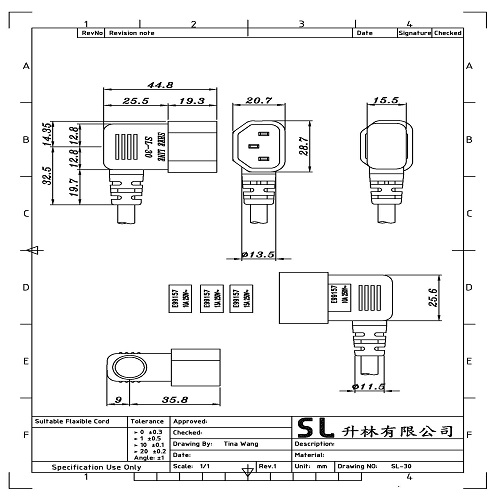

| Specification |  SL-30 (US Power Cord).jpg | ||
| EUROPE | Approvals | ||
| Wire Type | H05VV-F 0.75~1.0mm 2/ 3G | ||
| Voltage | 250V | ||
| Electric Current | 10A | ||
| Processing | Terminal Heat shrink Wire strippingtin-plate Tin-plate | ||
| Specification |
In our increasingly electrified world, power cords and plugs are the silent workhorses that connect us to the energy fueling our lives. From charging your smartphone to powering heavy machinery, these crucial components are everywhere. But have you ever stopped to consider their importance, the variety they offer, or what makes them safe and efficient? This comprehensive guide will illuminate the world of power cords and plugs, helping you understand their significance and make informed choices.
At its most basic, a power cord is an electrical cable designed to connect an appliance or device to a power source, typically a wall outlet. The plug is the connector at one end of the power cord that inserts into the outlet, facilitating the flow of electricity. While seemingly simple, the design and construction of power cords and plugs are critical for safety, efficiency, and compatibility across various regions and applications.
A standard power cord consists of several key elements:
Conductors: These are the wires, usually made of copper, that carry the electrical current. The number of conductors varies depending on the cord's purpose (e.g., two for ungrounded devices, three for grounded ones).
Insulation: Each conductor is individually insulated with a non-conductive material like PVC or rubber to prevent short circuits and electrical shock.
Jacket: An outer protective layer encases all the insulated conductors, providing mechanical strength and protection against abrasion, moisture, and chemicals. The jacket material also influences the cord's flexibility and durability.
Plug: As mentioned, this is the end connector that mates with an electrical outlet. Plugs come in a vast array of designs, each adhering to specific international standards for voltage, current, and grounding.
Connector (Appliance End): The other end of the power cord often features a connector designed to plug into the specific device. Common types include IEC C13 for computers and monitors, or proprietary connectors for various appliances.
One of the most complex aspects of power cords is the sheer diversity of plugs used globally. Different countries and regions have adopted their own standards for voltage, frequency, and plug configurations. This is why a travel adapter is a must-have for international travelers! Some of the most common plug types include:
Type A & B (North America & Japan): Two flat parallel blades (Type A) or two flat parallel blades with a round grounding pin (Type B).
Type C & F (Europe & many other regions): Two round pins (Type C, ungrounded) or two round pins with grounding clips on the side (Type F, "Schuko").
Type G (UK, Ireland, Malaysia, Singapore): Three rectangular pins.
Type I (Australia, New Zealand, China): Three flat pins in a V-shape.
Type J (Switzerland): Three round pins.
Type L (Italy): Three round pins in a row.
Understanding these distinctions is vital for anyone importing or exporting electronics, or simply traveling with their devices.
Investing in high-quality power cords and plugs is not merely a matter of convenience; it's a critical safety concern. Substandard cords can lead to:
Overheating: Insufficient gauge wire or poor insulation can cause the cord to overheat, posing a fire risk.
Electrical Shock: Damaged insulation or improper grounding can expose users to dangerous electrical shocks.
Short Circuits: Faulty wiring can lead to short circuits, damaging appliances or tripping circuit breakers.
Reduced Performance: Inadequate cords can lead to voltage drops, impacting the performance and lifespan of connected devices.
Always look for power cords that meet relevant safety certifications (e.g., UL, CE, RoHS) to ensure they comply with stringent quality and safety standards.
When selecting a power cord and plug, consider the following:
Application: What device will it power? (e.g., laptop, desktop, server, home appliance, industrial equipment)
Voltage and Amperage: Ensure the cord and plug are rated for the appropriate voltage and current requirements of your device and region.
Length: Choose a length that provides sufficient reach without excessive slack, which can be a tripping hazard.
Environment: Consider where the cord will be used. Will it be exposed to moisture, extreme temperatures, or heavy traffic? This will influence the required jacket material and durability.
Certification: Always prioritize cords with recognized safety certifications.
In conclusion, power cords and plugs are indispensable elements of our modern infrastructure. Their seemingly simple function belies a complex world of international standards, safety considerations, and critical performance requirements. By understanding their role and making informed choices, you can ensure the safe and efficient operation of all your electrical devices.
