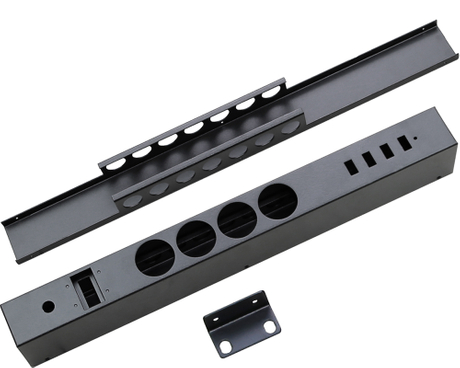

Sheet metal bending is one of the most ubiquitous processes in modern manufacturing. From automotive frames to aerospace panels, electronic housings to industrial machinery, bending transforms flat sheets into functional and structural components with precise angles, curves, and complex shapes. Despite its apparent simplicity, bending is a complex process where material properties, tooling, and process parameters must be carefully controlled. One of the most persistent and challenging defects is cracking, which compromises both structural integrity and aesthetics.
Historically, sheet metal bending evolved from hand-forming methods to sophisticated CNC-controlled press brakes, robotic automation, and heat-assisted bending technologies. The increase in precision requirements, along with the use of high-strength and lightweight alloys, has heightened the importance of preventing bending defects. Cracking can occur at any stage, from prototype fabrication to mass production, and often results in scrap, rework, and increased operational costs.
Preventing cracking requires understanding why cracks form, how material properties affect bending, and which operational practices mitigate stress. Modern industry demands not only functional performance but also visual perfection, making crack prevention critical in sectors like aerospace, electronics, automotive, and medical devices. This comprehensive guide will explore the mechanics of cracking, detailed prevention strategies, practical tips, frequently asked questions, and real-world case studies, providing actionable insights for fabricators, engineers, and quality managers.
Bending is the controlled plastic deformation of a sheet metal along a straight axis or a curve to achieve a desired angle or shape. Unlike cutting, punching, or stamping, bending redistributes the material rather than removing it. During bending:
· The outer fibers of the sheet experience tensile stress, stretching the metal.
· The inner fibers experience compressive stress, which can lead to wrinkling if not properly managed.
The balance between these stresses determines whether the bend is smooth or prone to defects such as cracking, wrinkling, or springback. Understanding the mechanics of bending is critical for minimizing cracking risks and ensuring repeatable, high-quality production.
· In air bending, the punch partially contacts the sheet, deforming it into a V-die.
· Advantages: Allows multiple angles with the same die; flexible and cost-effective.
· Challenges: Greater springback requires precise tonnage and angle calculation.
· Applications: Thin stainless steel panels for electronic enclosures and architectural facades often utilize air bending to minimize stress concentration.
· The punch forces the sheet fully into the die, plastically deforming it to achieve precise angles.
· Advantages: Accurate, repeatable angles; minimal springback.
· Challenges: Localized high stress can increase cracking risk in brittle metals.
· Use Case: Aluminum housings for aerospace electronics requiring tight tolerances.
· Uses a V-shaped die and punch.
· Advantages: Simple and cost-effective for standard bends.
· Challenges: Stress concentrates at the bend apex; limited angle flexibility.
· Example: Mild steel brackets for industrial machinery.
· Sheets pass through rollers to form curves.
· Advantages: Produces uniform curvature with minimal localized stress.
· Challenges: Not suitable for sharp bends or short sections.
· Applications: Cylindrical aerospace panels, pipes, and long automotive frame components.
· Modern press brakes integrate CNC controls and robotic feeders to increase precision and consistency.
· Advantages: Reduces operator error, maintains uniform bend angles, and allows complex bend sequences.
· Considerations: Requires careful programming and tooling alignment to prevent cracking.
Cracking arises from the interaction of material properties, bend geometry, tooling, and process parameters. Understanding these causes allows fabricators to design effective prevention strategies.
· Low ductility or high yield strength metals (e.g., 304 stainless steel, 6061-T6 aluminum) are prone to cracking.
· Mechanism: Tensile stress on outer fibers exceeds material elongation, creating microcracks.
· Observation: Thinner sheets crack more easily; thicker, ductile sheets tolerate tighter bends.
· Data Insight: Studies show that stainless steel sheets below 1.2 mm thickness can tolerate only 20–25° bends without pre-treatment, whereas annealed sheets allow 90° bends safely.
· Rolling direction affects crack formation; bending perpendicular to grain increases fracture risk.
· Hardened zones along laser-cut or plasma-cut edges are brittle and prone to crack initiation.
· Mitigation: Align bends with the grain where possible; smooth or anneal edges.
· Example: In aerospace panel fabrication, bending along the grain reduced surface cracks by 35% compared to perpendicular bends.
· Cold working increases hardness, reduces elongation, and concentrates stress.
· Solution: Annealing before bending relieves internal stresses and improves ductility.
· Industry Practice: Aluminum 5052 panels often undergo 300°C stress-relief annealing before bending complex enclosures.
· Thicker sheets experience higher tensile stress on the outer radius.
· Sharp corners, holes, or cutouts near bends act as stress concentrators.
· Practical Tip: Use bend reliefs and avoid abrupt geometry changes near bend lines.
· Case Study: Electrical cabinets with relief notches at 1.5× sheet thickness distance reduced cracking incidents by 70%.
· Inner radius smaller than sheet thickness generates excessive stress.
· Guideline: Inner radius ≥ sheet thickness; brittle metals may require 1.5–2× thickness.
· Misaligned punches, worn dies, or rough surfaces create stress points.
· Observation: Minor burrs can propagate cracks, especially in stainless steel.
· Over-applied tonnage or rapid bending can overstress fibers and cause microfractures.
· Recommendation: Gradually apply force; use tonnage charts based on sheet thickness and material type.
· Cold bending reduces ductility, while controlled heat can improve metal flow.
· Overheating can degrade coatings or reduce mechanical strength.
· Example: Aluminum 7075-T6 preheated to 200°C exhibits a 40% reduction in cracking compared to room-temperature bending.
Preventing cracking requires a systematic, multi-factorial approach encompassing material selection, bend design, tooling, and process techniques. Each aspect is detailed below.
· Select metals with high elongation; annealed aluminum, mild steel, and certain ductile stainless steels perform well.
· Test small samples to ensure the chosen material meets bending requirements.
· Case Example: Annealed 304 stainless panels bent successfully to 90° without cracking, whereas cold-rolled sheets required multi-step bending and lubrication.
· Remove hardened layers or burrs from laser/plasma cuts via grinding or polishing.
· Chamfered edges reduce stress concentrations.
· Example: Polished stainless steel edges show fewer micro-cracks under tight bending.
· Industry Tip: Edge polishing also improves coating adhesion in painted metal parts.
· Annealing or vibration relief reduces work-hardening effects.
· Over-annealing can weaken material; precise temperature control is essential.
· Practical Tip: Post-cut annealing for aluminum sheets prevents cracking during tight radii bends.
· Bend along the rolling direction to maximize ductility.
· Perpendicular bends require larger radius, lubrication, or heat assistance.
· Observation: Bending along the grain reduces outer-fiber stress by up to 30% compared to perpendicular bends.
· Test each material batch to determine safe bend radius, angle, and tonnage.
· Document parameters to maintain consistency.
· Industrial Standard: Aerospace sheet metal suppliers perform bend tests for every batch to avoid unexpected failures.
· Inner radius should match or exceed sheet thickness; brittle metals need 1.5–2× thickness.
· Larger radii distribute stress, preventing outer-fiber cracking.
· Data Reference: In a production line bending 1.5 mm aluminum, increasing inner radius from 2 mm to 3.5 mm reduced cracking incidence by 60%.
· Small notches or cutouts at corners reduce stress concentration.
· Place reliefs 1–2× sheet thickness from the bend line.
· Observation: Bend reliefs reduce cracking incidence by over 70% in electrical enclosure production.
· Simple bends first, complex bends later.
· Reduces cumulative stress and crack formation.
· Simulation tools help optimize sequencing for complex panels.
· Example: Multi-bend automotive chassis components benefited from optimized sequencing, reducing micro-crack occurrence.
· Avoid holes or cutouts near bend lines; add reliefs if unavoidable.
· Maintain 2× sheet thickness distance from bends.
· Use gradual angles; multiple gentle bends reduce stress.
· For high-strength metals, 2–3 sequential bends may be necessary.
· Rounded tips and proper die widths reduce stress concentration.
· Example: V-dies 6× sheet thickness balance stress distribution for air bending.
· Regular polishing and inspection prevent surface defects.
· Even minor burrs can propagate cracks in stainless steel.
· CNC followers, forming pads, and clamps stabilize sheets.
· Prevent uneven bending or warping.
· Correct tonnage prevents overstress and underbending.
· Follow material-specific tonnage charts.
· Metalworking fluids reduce friction, improve ductility, and protect surface finish.
· Observation: Lubrication reduces cracking by allowing metal flow and minimizing tensile stress on outer fibers.
· Overbend or use coining to counteract elastic recovery.
· Excessive coining increases localized stress; balance is key.
· Gradual force application prevents microfractures.
· Stepwise bending distributes stress across multiple increments.
· Essential for high-strength or thick sheets.
· Induction or oven preheating improves ductility for brittle alloys.
· Temperature control is critical to prevent oxidation or property loss.
· Annealing or vibration reduces residual stresses and microcrack propagation.
· Critical for aerospace, medical, and high-precision components.
1. Thin Stainless Steel Panels: Multi-step bending with lubrication prevents springback-induced cracking.
2. Thick Aluminum Structures: Preheating combined with coining ensures smooth bends.

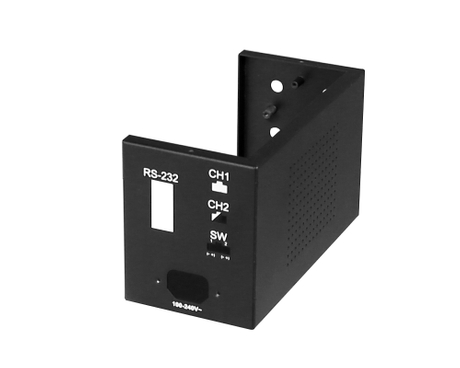

3. Complex Enclosures: Optimized bend sequence and relief notches reduce cumulative stress cracking.
4. Automotive Chassis Components: CNC simulation optimized bend order, reducing material failure by 45%.
1. Prototype and Test: Validate new materials and designs with small samples.
2. Simulation Tools: Use CNC press brakes with 3D simulation to identify high-stress areas.
3. Pre-Bend Checklist: Verify material, tooling, lubrication, and tonnage.
4. Inspection: Visual checks, CMM measurements, and detailed logging for quality assurance.
5. Operator Training: Educate operators on bending mechanics, defect recognition, and safe operation.
6. Batch Consistency: Monitor incoming material for thickness, hardness, and ductility.
7. Record-Keeping: Maintain detailed bend logs to track patterns and prevent repeat defects.
8. Environmental Control: Maintain consistent temperature and humidity, which can affect material properties.
9. Maintenance Scheduling: Plan preventive maintenance for press brakes to prevent tool wear-induced cracks.
10. Lubricant Management: Ensure proper fluid viscosity and reapplication during high-volume production.
Q1: Can cracking be completely eliminated?
A: Complete elimination is difficult, but proper material selection, bend design, tooling, and process control can minimize cracking to near zero.
Q2: Why do cracks appear inconsistently between batches?
A: Minor variations in material properties, edge hardness, or machine setup can create inconsistencies.
Q3: Does increasing the bend radius always prevent cracks?
A: Larger radii reduce stress but may not be sufficient for brittle metals; lubrication or heat-assisted bending may also be necessary.
Q4: How does springback affect cracking?
A: Residual stress from springback can propagate existing microcracks or create new ones.
Q5: Is heat-assisted bending safe for all metals?
A: Only with precise temperature control; overheating can degrade mechanical properties or coatings.
Q6: How often should tooling be inspected?
A: Before every job, especially for high-precision or brittle-metal bending.
Q7: Can holes near bends cause cracking?
A: Yes; ensure sufficient distance or use bend reliefs.
Q8: How does material thickness affect bending strategy?
A: Thicker sheets require higher tonnage, larger radii, and sometimes heat assistance.
Q9: What is multi-step bending?
A: Bending gradually in several increments to distribute stress.
Q10: Does lubrication reduce cracking?
A: Yes; it lowers friction, improves metal flow, and reduces tensile stress on the bend.
Preventing cracking during sheet metal bending requires a comprehensive approach that combines material selection, bend design, tooling, and process control. By integrating these strategies, manufacturers can minimize cracking, reduce scrap, and ensure high-quality bends, transforming bending into a predictable, efficient, and precise process. Companies with extensive experience in sheet metal fabrication, following best practices demonstrated by Sheeline Co., Ltd., show that adherence to strict material standards, tooling maintenance, and process control leads to superior results and consistent bend quality. Leveraging such industry expertise ensures that both high-strength and delicate metals can be formed reliably, maintaining structural integrity, aesthetic standards, and operational efficiency. Advanced fabrication facilities increasingly rely on simulation-driven design, automated CNC bending, and pre-bend testing to push the limits of complex geometries while eliminating cracking risks.
