The Definitive Guide to Sheet Metal Fabrication
From Material Selection to Industrial Solutions
In the modern manufacturing landscape, sheet metal fabrication stands as one of the most versatile and essential processes. Whether it is the precision housing of a medical device, the structural chassis of an electric vehicle, or the complex enclosures of telecommunications infrastructure, sheet metal provides the structural integrity and design flexibility that other methods cannot match.
For engineers, procurement specialists, and product founders, understanding the nuances of sheet metal is not just about knowing "how it’s made"—it is about optimizing for cost, durability, and time-to-market. This pillar page serves as your comprehensive knowledge hub, guiding you through the technical standards, material logic, and advanced processes of the industry.
Fundamentals: What is Sheet Metal Fabrication?
At its core, sheet metal fabrication is the process of turning flat sheets of metal—typically ranging from 0.5mm to 6mm in thickness—into functional parts and structures through cutting, bending, and assembling.
Unlike CNC machining, which subtracts material from a solid block, or 3D printing, which adds material layer by layer, sheet metal fabrication is a "form-and-join" discipline. It offers a unique balance of high strength-to-weight ratio and cost-efficiency for both prototyping and mass production.
Why Choose Sheet Metal?
Durability
Superior resistance to heat, chemicals, and mechanical stress compared to plastics.
Scalability
Low tooling costs make it ideal for low-to-medium volume production.
Sustainability
Metals like aluminum and steel are 100% recyclable, aligning with modern ESG goals.
Sheet Metal Fabrication: Form & Join
Material Logic: Selecting the Right Substrate
Choosing a material isn't just about strength; it’s about how the metal behaves during fabrication and its performance in the end-use environment.

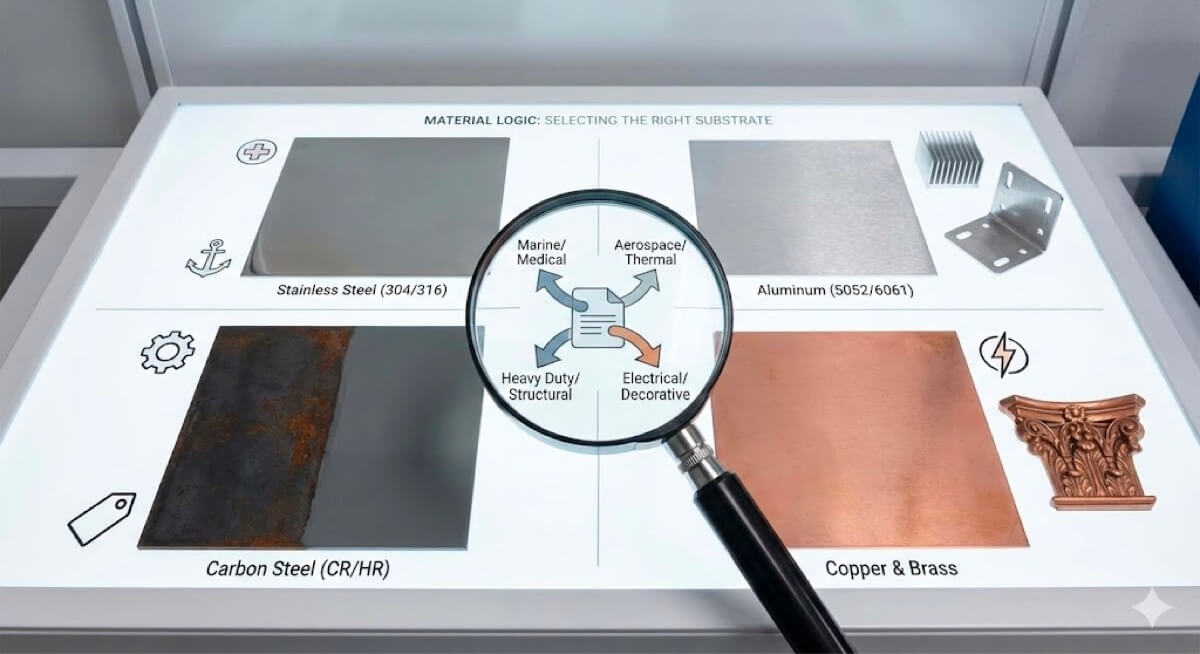

Common Types of Sheet Metal Materials
Stainless Steel (304, 316)
The gold standard for corrosion resistance. 316 is preferred for marine or medical applications due to its molybdenum content.
Aluminum (5052, 6061)
Known for its lightweight and excellent thermal conductivity. 5052 is the "workhorse" for sheet metal due to its superior formability.
Carbon Steel (Cold Rolled/Hot Rolled)
Cost-effective and strong, though it requires surface treatment (like powder coating) to prevent rust.
Copper & Brass
Primarily used for electrical conductivity or aesthetic architectural elements.
Deep Dive: For a technical breakdown of mechanical properties and alloy comparisons, read our full guide on: Types of Sheet Metal Material.
Precision Standards: Thickness and Gauges

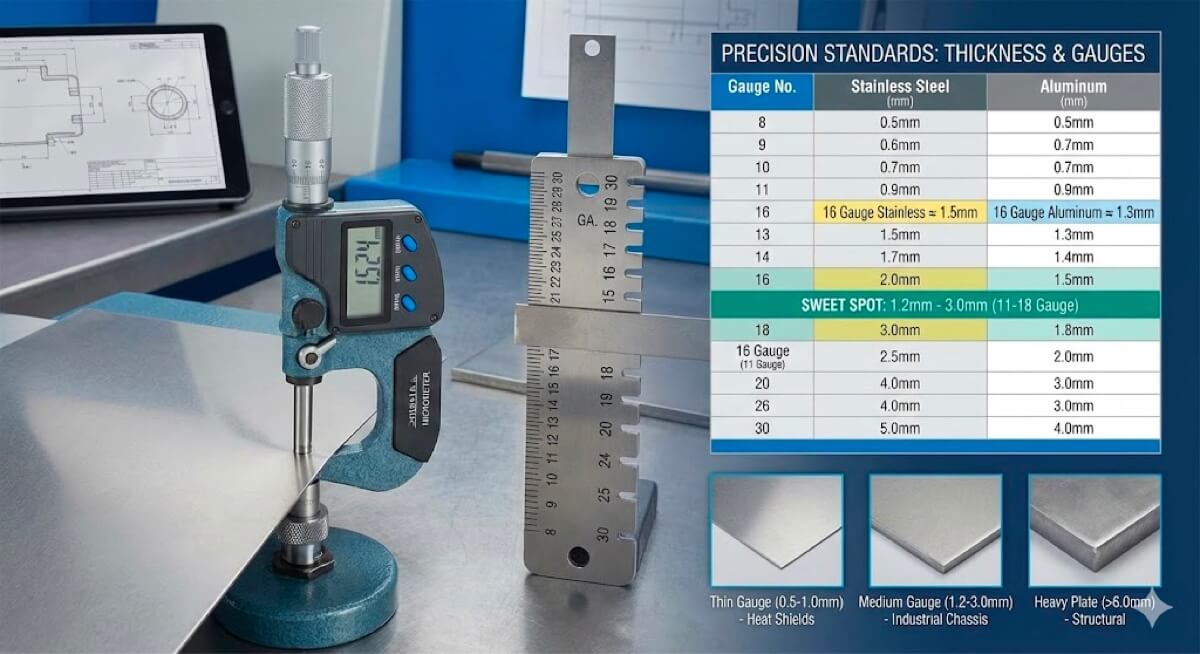

In sheet metal, "thickness" is rarely a simple measurement. The industry often uses the Gauge system, where a higher gauge number represents a thinner sheet.
Understanding the Gauge vs. Metric Conflict
A common mistake in international procurement is the discrepancy between US Gauge standards and Metric (mm) measurements. For example, 16 Gauge Stainless Steel is approximately 1.5mm, but 16 Gauge Aluminum is different.
What is the Typical Thickness of Sheet Metal?
Most industrial enclosures and brackets fall within the 1.2mm to 3.0mm (11 to 18 Gauge) range. Choosing a thickness outside of "standard" stock sizes can lead to significantly higher material costs and longer lead times.
Thin Gauge (0.5mm - 1.0mm): Used for heat shields and intricate electronic shims. Medium Gauge (1.2mm - 3.0mm): The "sweet spot" for most industrial chassis and frames. Heavy Plate (>6.0mm): Transitioning into plate fabrication for structural heavy machinery.

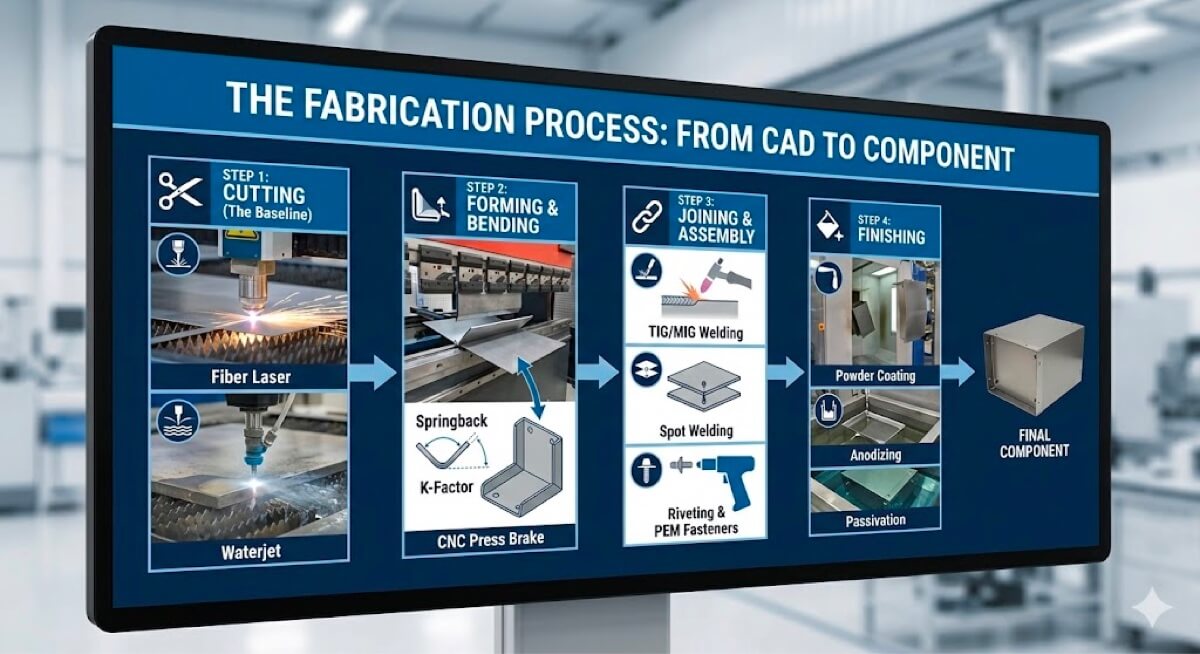

Fabrication is a multi-stage journey. The sequence of these processes determines the final part's precision and structural integrity.
STEP 1
Cutting (The Baseline)
Fabrication relies on Fiber Laser Cutting for speed and precision. For thicker plates where heat deformation is a concern, Waterjet Cutting is the preferred alternative.
STEP 2
Forming and Bending
This is where the flat sheet becomes 3D. Using CNC Press Brakes, engineers must account for Springback (the tendency of metal to return to its original shape) and the K-Factor (the ratio of the neutral axis to the material
thickness).
STEP 3
Joining and Assembly
Welding (TIG/MIG)
Provides the strongest bond but requires skilled labor and post-weld grinding.
Spot Welding
Ideal for high-speed assembly of overlapping sheets.
Riveting & PEM Fasteners
Best for joining dissimilar metals or when heat must be avoided.
STEP 4
Finishing
Surface treatments like Powder Coating, Anodizing, and Passivation are not just aesthetic; they are functional layers that determine the product's lifespan.
The industry is moving away from "manual craftsmanship" toward "digital precision." Understanding these advancements can help you select a supplier that offers better consistency and lower costs.
Key Technological Shifts
Automated Folding Cells
Robotics integrated with press brakes for 24/7 lights-out manufacturing.
AI-Driven Nesting
Software that optimizes part layout on a sheet to reduce material waste by up to 30%.
High-Power Fiber Lasers (12kW+)
Allowing for faster cutting of reflective materials like copper and brass with cleaner edges.

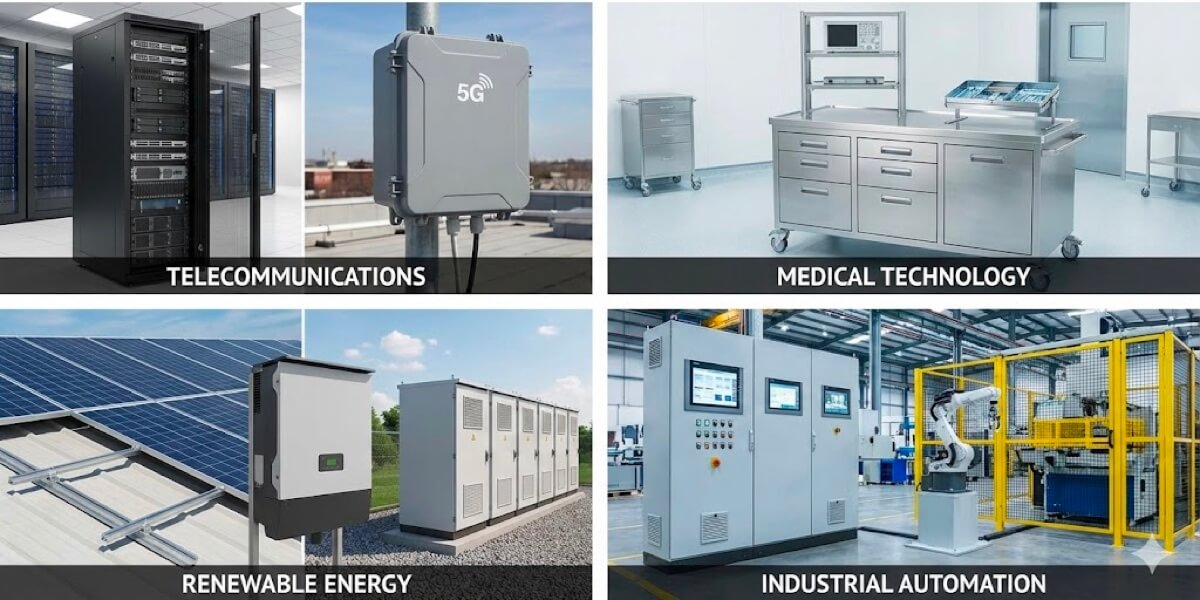

Solar mounting brackets, inverter housings, and battery storage cabinets for BESS.
Industrial Automation
Control panels, robot pedestals, and safety guarding systems.
Elevate Your Project with Specialized Fabrication
Whether you are designing for high-stakes medical environments or rugged outdoor infrastructure, generic fabrication isn't enough. You need solutions engineered for durability, precision, and compliance.
Discover how we solve complex structural and environmental challenges for global OEMs.
Industry Solutions & Applications
Conclusion: Moving from Design to Reality
Sheet metal fabrication is a blend of traditional physics and cutting-edge digital control. Success in this field requires more than just a drawing; it requires a partnership between design intent and manufacturing reality.
