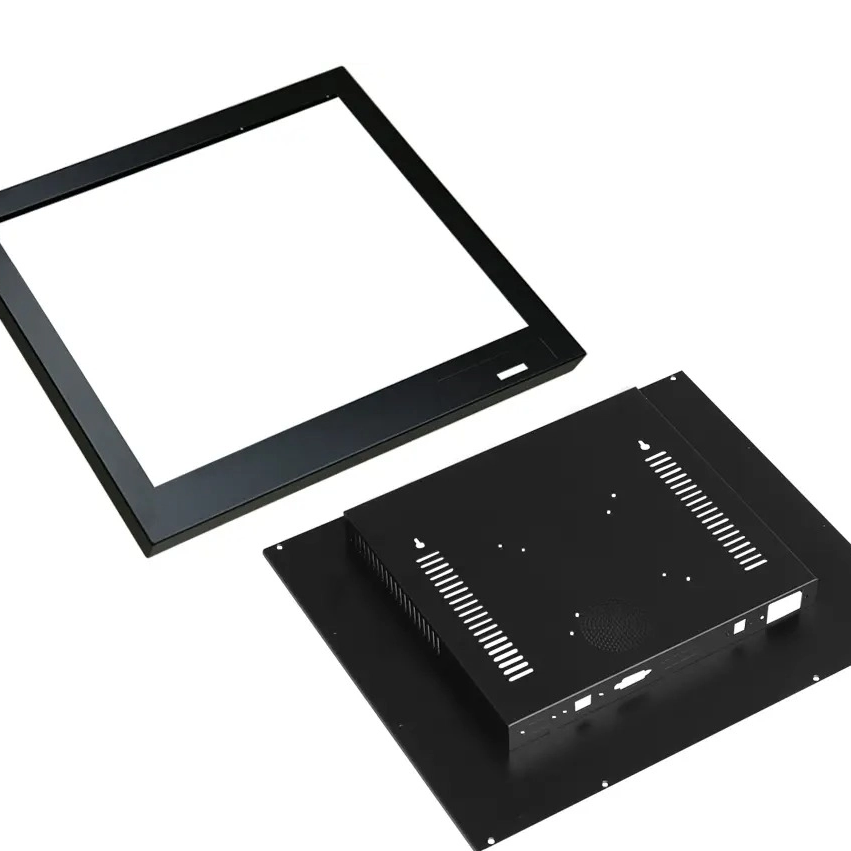

Sheet metal is a fundamental material used in a wide range of industries, such as construction, automotive, aerospace, and electronics. It is characterized by its versatility and ability to be fabricated into components that require different levels of strength, durability, and flexibility. The thickness of sheet metal is a pivotal factor that determines the material's strength, its ability to withstand external forces, and its suitability for particular applications. In industries such as Power Distribution Units (PDUs) and electrical enclosures, selecting the right sheet metal thickness is crucial for ensuring both structural integrity and safety.
Sheet metal thickness directly impacts the performance of the products it is used in. For example, thicker sheet metal provides greater resistance to physical impacts, ensuring that PDUs and electrical enclosures are strong enough to protect sensitive electrical components from environmental stresses like heat, moisture, dust, and mechanical damage. This article will explore the typical thicknesses of sheet metal, the factors that influence these choices, and how these thicknesses impact product safety and performance.
The thickness of sheet metal plays a significant role in the durability of the final product. In industrial applications, particularly in products like PDUs and electrical enclosures, the material's strength is crucial in providing protection against both external and internal stresses. Thicker sheet metal can withstand greater loads and impacts, reducing the likelihood of damage to sensitive components.
For example, in a Power Distribution Unit, the external sheet metal panels often need to be thicker to protect the internal components from physical damage during handling or operation. This is especially true for enclosures that are exposed to mechanical stress or environmental factors like moisture and dust. Thicker material also helps prevent deformation and structural failures, which could compromise the entire system. The increased strength that thicker sheet metal provides can prevent bending, warping, or breaking under pressure, which ensures the long-term reliability of the product.
Another essential factor influenced by thickness is the material’s resistance to environmental hazards. Electrical enclosures, for instance, need to prevent the ingress of moisture, dust, and other contaminants that could damage electrical components. Thicker sheet metal can create a more robust barrier against such elements, ensuring that electrical enclosures meet stringent safety standards.
For Power Distribution Units, sheet metal also plays a role in shielding the components from electromagnetic interference (EMI). The proper thickness helps mitigate EMI and ensures the integrity of the electrical components inside. Thicker material is typically more effective at blocking interference, ensuring that the system operates reliably without performance degradation. The material’s thickness is also crucial in maintaining the longevity of the unit, especially in harsh environments where corrosion, temperature fluctuations, and humidity can cause damage over time.
Sheet metal refers to thin, flat pieces of metal that are processed to various thicknesses using mechanical methods like rolling, pressing, or hammering. Sheet metal can be made from various materials such as steel, aluminum, copper, and stainless steel. The thickness of the sheet metal can vary depending on the specific application and material requirements.
The measurement of sheet metal thickness is generally provided in gauge or millimeters (mm). In the United States, the gauge system is commonly used, where a lower gauge number corresponds to a thicker sheet of metal. For example, a 10-gauge steel sheet is thicker than a 20-gauge steel sheet. However, for more precise applications, thickness is often measured in millimeters, as it offers a more accurate measurement that accounts for variations between materials.
In the gauge system, the thickness of sheet metal is categorized by numbers, with lower numbers indicating thicker material. For instance:
10-gauge steel has a thickness of 3.419 mm.
12-gauge steel is about 2.660 mm.
16-gauge steel measures 1.519 mm.
However, the gauge system varies between different materials. For example, a 10-gauge aluminum sheet is thinner than a 10-gauge steel sheet. This can be a challenge when precise measurements are required, such as in the construction of PDUs and electrical enclosures. Using millimeters (mm) provides more accuracy and standardization across materials, making it easier to determine the exact thickness needed for specific applications. Millimeters are often favored in industries where precision is paramount, as slight differences in thickness can have a significant impact on performance and safety.
Steel is one of the most widely used materials in sheet metal fabrication due to its superior strength and rigidity. The thickness of steel sheet metal can vary, and the material is chosen based on the application’s requirements.
10-gauge steel (3.419 mm) is typically used for heavy-duty structural components, such as frames and large machinery, due to its high strength and ability to withstand significant stress.
12-gauge steel (2.660 mm) is commonly used in general fabrication for automotive parts, industrial components, and heavy-duty structural applications.
16-gauge steel (1.519 mm) is used for appliances, furniture, and light structural components, offering a good balance between strength and weight.
20-gauge steel (0.911 mm) is ideal for lighter applications, including smaller components, panels, and enclosures for electronic devices.
In the case of PDUs, the typical sheet metal thickness ranges from 1.0 mm to 2.0 mm, offering both structural integrity and protection for the electrical components housed inside. Thicker steel is often selected for external panels, while thinner steel is used for internal supports and brackets, balancing cost, strength, and functionality.
Aluminum is a lightweight material prized for its corrosion resistance and lightness. It is commonly used in aerospace and automotive applications. Aluminum sheet metal thicknesses include:
10-gauge aluminum (2.588 mm) is used in aerospace components and automotive parts where weight reduction is essential without compromising strength.
16-gauge aluminum (1.291 mm) is often used for electrical enclosures, heat exchangers, and other light-duty applications.
20-gauge aluminum (0.812 mm) is ideal for lightweight enclosures for electronic devices and appliances.
For PDUs, aluminum sheets typically range from 1.0 mm to 1.5 mm, balancing strength and weight reduction. Aluminum is often favored in applications where weight is a concern but protection and durability are still required.
Copper is known for its excellent electrical conductivity and corrosion resistance, making it the material of choice for electrical components and wiring.
10-gauge copper (3.404 mm) is used for high-conductivity components and power distribution applications, ensuring effective electrical performance.
16-gauge copper (1.651 mm) is used for electrical panels and components that require high conductivity.
20-gauge copper (0.889 mm) is often used for wiring and flexible components that require high conductivity and flexibility.
In PDUs, copper is used for components like wiring and electrical assemblies, often with thinner gauges to maintain flexibility and conductivity. Copper is also chosen for its high resistance to corrosion, which ensures that the wiring maintains its performance over long periods.
Thicker sheet metal provides greater rigidity and resistance to external forces, which is crucial for products like PDUs that must endure both mechanical stresses and environmental factors. For example, the outer panels of PDUs often use sheet metal between 1.0 mm and 2.0 mm to provide adequate protection from impacts, dust, moisture, and physical damage.
Thicker sheet metal ensures that the unit maintains its shape and integrity even under load, reducing the likelihood of deformation or catastrophic failure. This is especially important for products that are subject to regular physical handling, such as industrial equipment.
In industries such as aerospace, minimizing the weight of materials is essential. In PDUs, weight is less of a concern, but using materials like aluminum with thicknesses between 1.0 mm to 1.5 mm can help reduce weight and manufacturing costs without compromising performance. Lightweight materials are also advantageous in applications where mobility or ease of transportation is required.
Reducing weight through the use of thinner materials can also contribute to energy savings during manufacturing and shipping. However, this must be balanced against the need for structural strength and durability.
The thickness of sheet metal affects the methods used for fabrication:
Laser Cutting: Required for thicker sheets, providing high precision. Thicker metals require advanced cutting techniques such as laser cutting or waterjet cutting to achieve clean, accurate edges.
Bending: Thicker materials require more force to bend, and often need advanced machinery for accuracy. Thicker metals are typically more difficult to manipulate, so specialized tools and equipment are necessary.
The choice of thickness affects the choice of fabrication process, which in turn influences the overall cost and time required for production. Manufacturers must select a fabrication process that aligns with both the material and the desired end product.
Each material offers different properties that influence the required thickness. For example, aluminum is lightweight and corrosion-resistant, which allows for thinner gauges, while steel is stronger but typically requires thicker sheets for applications like structural supports. Copper’s high conductivity allows it to be used in thinner gauges for electrical applications without sacrificing performance.
These material properties must be carefully considered when selecting sheet metal for PDUs and electrical enclosures to ensure that the material chosen meets all performance, durability, and safety requirements.
Thicker sheet metal is generally more expensive due to both material costs and the complexity of fabrication. Manufacturers must balance performance and cost to ensure that the final product meets the necessary specifications while remaining within budget.
Using thinner materials may lower costs but can compromise the overall durability and performance of the product. It is important to choose a thickness that provides the best balance between cost and functionality, ensuring long-term reliability while remaining cost-effective.
The sheet metal used in PDUs serves to create protective enclosures for electrical components. The thickness of the sheet metal used in these enclosures is chosen based on the need for protection, durability, and compliance with safety standards.
Outer Panels: These typically use 1.0 mm to 2.0 mm thick sheet metal to offer robust protection against environmental damage and external impacts.
Internal Mounting Plates: Usually made from 1.0 mm to 1.5 mm thick sheet metal to securely hold electrical components in place.
EMI Shielding: Sheet metal with thicknesses ranging from 0.8 mm to 1.2 mm is used for shielding against electromagnetic interference to maintain operational integrity.
Electrical enclosures require sheet metal thicknesses from 1.0 mm to 2.0 mm to ensure they effectively protect the internal components from physical damage, moisture, and other environmental hazards. The right thickness ensures that the enclosure can withstand environmental stresses while providing a barrier to protect sensitive electrical systems.
Understanding sheet metal thickness is essential for ensuring that products like PDUs and electrical enclosures perform safely and effectively. Thicker sheet metal provides enhanced durability, structural integrity, and protection against environmental factors. Typically, sheet metal thicknesses for PDUs range from 1.0 mm to 2.0 mm, ensuring a perfect balance between strength and weight. Manufacturers need to carefully consider the material properties, fabrication processes, and application requirements to select the right thickness that guarantees both performance and safety.
The typical thickness of sheet metal used in PDUs and electrical enclosures generally falls between 1.0 mm and 2.0 mm, depending on the application and material requirements. Factors like material properties, structural integrity, fabrication processes, and cost all play important roles in selecting the appropriate thickness. By understanding these factors, manufacturers can choose the right sheet metal thickness to meet the required safety and performance standards.
For high-quality sheet metal fabrication tailored to PDUs and electrical enclosures, Sheeline Co., Ltd. offers precision manufacturing that ensures durability, reliability, and cost-effectiveness.
The typical thickness of sheet metal can vary depending on the material. For example, steel ranges from 0.0359 inches (0.911 mm) for 20-gauge to 0.1345 inches (3.419 mm) for 10-gauge. For aluminum, it ranges from 0.03196 inches (0.812 mm) for 20-gauge to 0.1019 inches (2.588 mm) for 10-gauge.
Sheet metal thickness is usually measured in gauges or millimeters (mm). A lower gauge number indicates thicker material, and for precise measurements, thickness is often given in millimeters.
Factors include the structural requirements, weight considerations, fabrication processes, material properties, and cost implications.
Sheet metal in PDUs is used for creating enclosures, internal mounting plates, and components for EMI shielding. The thickness typically ranges from 1.0 mm to 2.0 mm for the outer panels and 1.0 mm to 1.5 mm for internal plates.
Sheeline Co., Ltd. offers high-quality sheet metal fabrication services, including precision laser cutting, bending, and punching. Their expertise ensures that PDUs and electrical enclosures meet industry standards for safety, durability, and performance.
